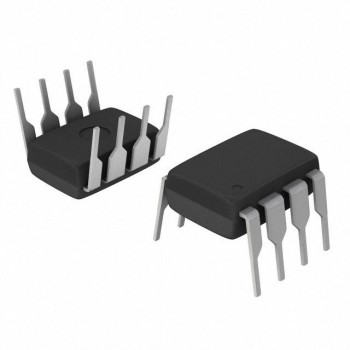

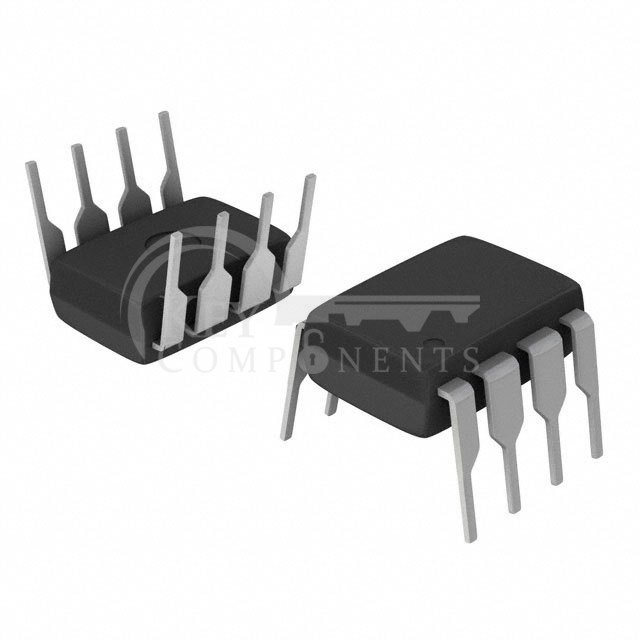

MAX634CPA
| Manufacturer Part | MAX634CPA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Description | IC REG BCK BST ADJ 150MA 8DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Step-Up/Step-Down |
| Output Configuration: | Negative |
| Topology: | Buck-Boost |
| Output Type: | Adjustable |
| Number of Outputs: | 1 |
| Voltage - Input (Min): | 2.6V |
| Voltage - Input (Max): | 16.5V |
| Voltage - Output (Min/Fixed): | -2.6V |
| Voltage - Output (Max): | -20V |
| Current - Output: | 150mA |
| Frequency - Switching: | 100Hz ~ 75kHz |
| Synchronous Rectifier: | No |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Through Hole |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-PDIP |
