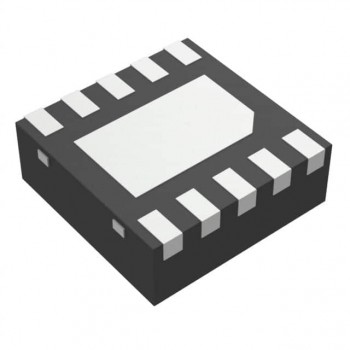

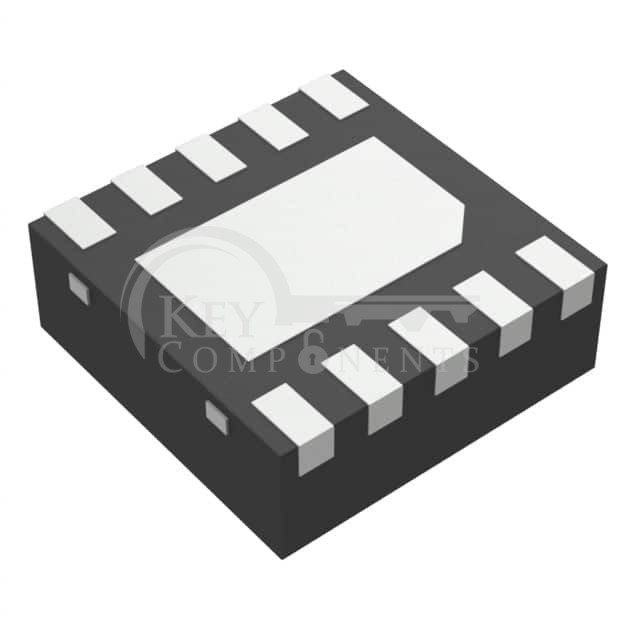

TLV751120280PDSQR
| Manufacturer Part | TLV751120280PDSQR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REG LIN 1.2/2.8V 500MA 10WSON |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Fixed |
| Number of Regulators: | 2 |
| Voltage - Input (Max): | 6V |
| Voltage - Output (Min/Fixed): | 1.2V, 2.8V |
| Voltage - Output (Max): | - |
| Voltage Dropout (Max): | 0.4V @ 500mA, 0.14V @ 500mA |
| Current - Output: | 500mA, 500mA |
| Current - Quiescent (Iq): | 35 µA |
| Current - Supply (Max): | - |
| PSRR: | 50dB ~ 30dB (1kHz ~ 1MHz) |
| Control Features: | Enable |
| Protection Features: | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature: | -40°C ~ 125°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 10-WFDFN Exposed Pad |
| Supplier Device Package: | 10-WSON (2x2) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
